CARTON TAPING & CARTON ERECTOR

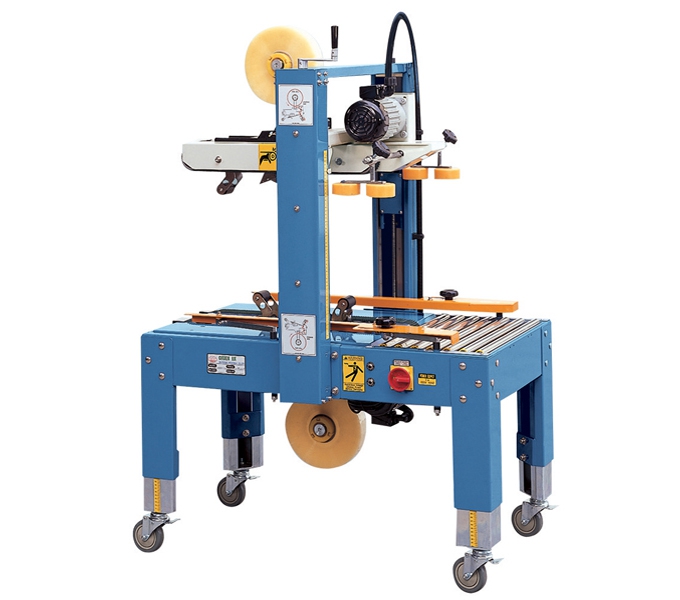

Uniform Carton Sealer with top & bottom drive YP-6602

ModelYP-6602
FunctionTop and bottom belt driven
Power supply1 phase, 110V / 220V / 240V
Tape width2″ or 3″
2” Tape Sealing sizeL150-∞mm, W180-500mm, H110-500mm
3” Tape Sealing sizeL150-∞mm, W180-500mm, H110-500mm
Tape overlapL60±5 (mm) standard
Working table height570-770mm
Conveyor speed20 M/min
Capacity
30 cases/min. depending on box size and operator efficiency
Machine dimensionL1105 x W785 x H1420mm



  • Additional modifications such as flap folding structure
  • Tape overlap 70±5mm
  • Extension roller table (infeed/exit) L500 x W500 mm
  • Outside diameter of OPP tape 350 mm
  • Can be combined with strapping machine or case erector
  • Additional pneumatic squeeze rollers-box width is fixed
  • Detection for no tape and NG taping function
  • Add emergency stop button or counter
  • 60 sec. auto-stop
  • PLC control
  • Safety fences with shut-off device
  • #304 Stainless steel machine construction
  • Customized color
